DRAWINGS | BIM

TITLE

  • pdf
  • cad

H3

  • pdf
  • cad

PROTIPS

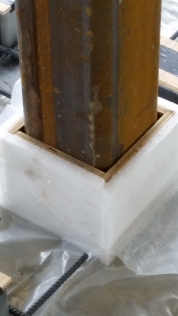

White PPI (Perimeter and Penetration Interface) material prevents the surrounding non-isolated structure and other building elements from making rigid contact with the isolated slab. While the PPI is properly installed, the bond breaker (Poly Sheeting) should have been left slightly taller to prevent any poured concrete from bridging the acoustic gap created by the PPI.

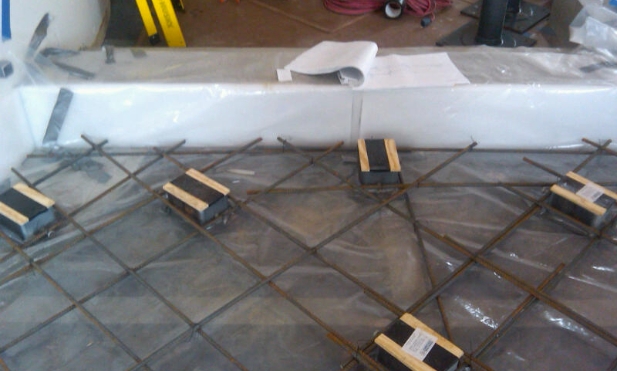

Good Installation of the
bond breaker at the curb

LINK TO KNC PRODUCT
